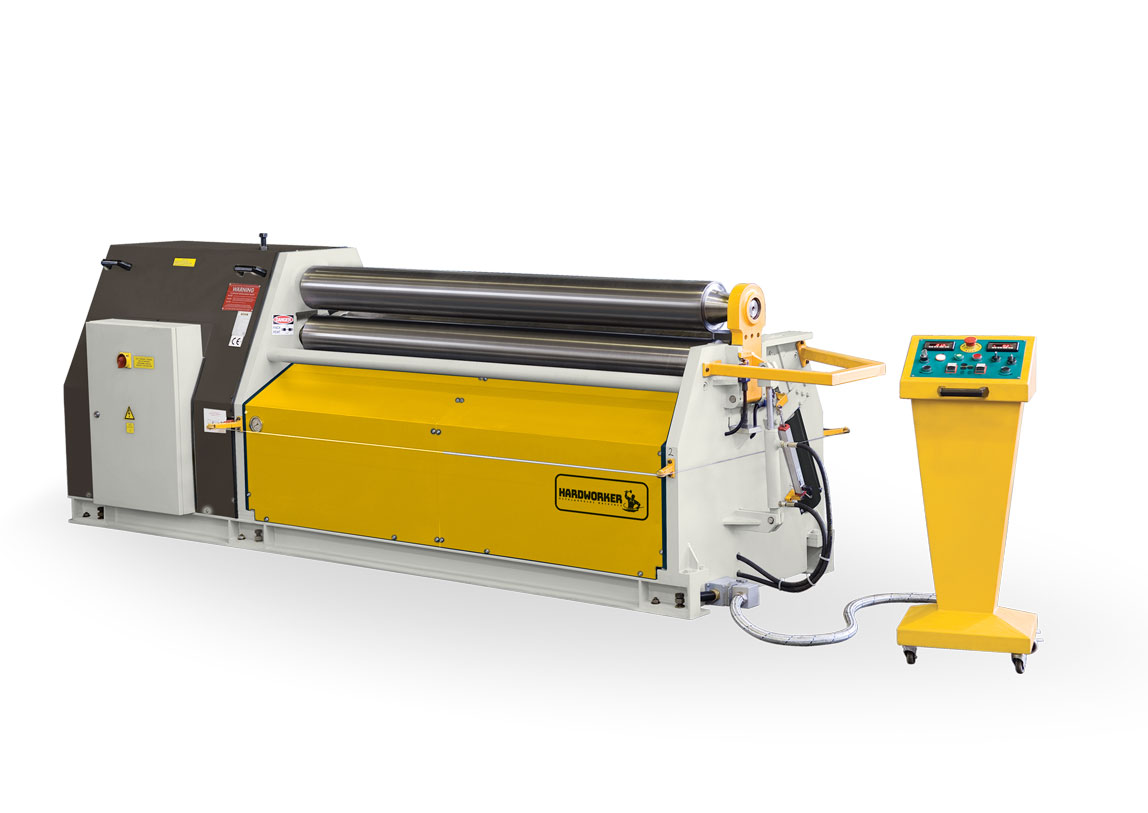

AS 3R H 3 Rolls Asymmetric Plate Roll Machine
STANDARD FEATURES & SPECIFICATIONS
- Overload Protection
- Hydraulic Drop-End for easy removal of finished ferrule
- Easy operation with mobile control panel with push buttons
- Welded steel frames
- Conical bending device
- Hydraulic balancing system
- Very suitable for light and medium plates,aluminum or stainless steel
- Top roll is powered by electrical motor and planetary gearbox. Bottom roll powered with cardan joint system.
- Induction hardened forged or rolled SAE 1050 (CK 45) Steel Rolls
- Built according to EC Safety Directives and has CE Mark
- Hot rolled SAE 1050 (CK 45) Steel Rolls
- Lateral rolls move linear way with hydraulic pistons
- Conical bending device with ball bearing
- Motor Powered centralised Rolls
- Hydraulic movement of Back Roll and bottom roll
- Main motor with Brake System
- Conical Bending, PreBending available
- Planetary Gearbox two rolls driven
- Back Roll with Ball Bearings for thin sheet Works
- SAE 1050 (CK45) certificated forget steel rolls with high tensile strength
- Hardened rolls
- 2 pcs. Digital Read-Outs
- SAE 1050 Quality Certificated Steel Rolls with high tensile strength
OPTIONAL FEATURES
- Automation with NC Control
- Hydraulic Overhead Crane for large diameters
- Hydraulic Lateral Side Supports for large diameters
- Ground and polished rolls
- Infinitively Variable Speed
- Double speed system
- Hydromotor for rotation
- Wire grooves on roll ends
